New 8-Port PoE Switch for small and medium-sized IP surveillance is here

DECCAN CHRONICLE
Published Jul 23, 2019, 9:23 pm IST
Updated Jul 23, 2019, 9:23 pm IST
The TEF1109TP-8-102W will be available on both online and offline platforms for the Rs 6000.
It has a Gigabit uplink port to guarantee the transmission smooth and stable.
 It has a Gigabit uplink port to guarantee the transmission smooth and stable.

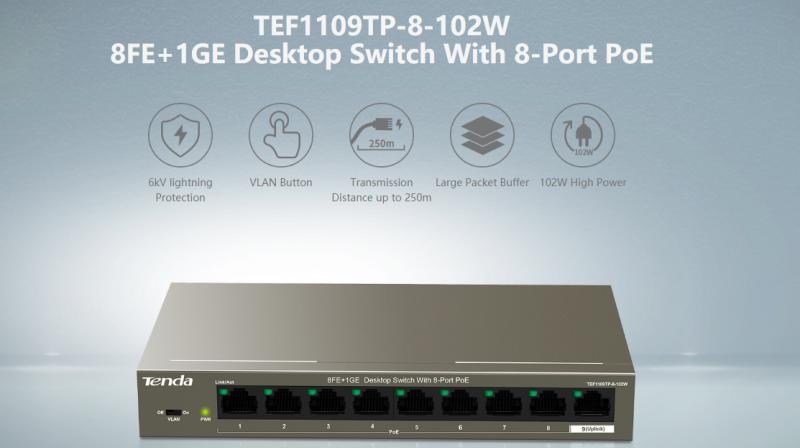

Tenda launched TEF1109TP-8-102W, an 8FE+1GE Desktop Switch With 8-Port PoE. The TEF1109TP-8-102W is equipped with features specific to the surveillance market. It has been designed to ease the deployment and management of IP camera networks ranging from a few cameras to large, high-density environments.

It has a Gigabit uplink port to guarantee the transmission smooth and stable, it provides 8 10/100M RJ45 ports and 1 Gigabit port. By using CAT5e twisted pairs, it can provide power and data transmission to APs, IP cameras, IP phones, and so on.



With ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.

It has a transmission Distance up to 250m. Equipped with the extension technology, data can be transmitted through 250 meters cable which would be a cost-effective replacement for extenders and optical fibers.

With excellent lightning protection, the switch supports 6kV lightning protection for uplink port and 4kV for power supply protection, protecting the switch from thunderstorms and making it more stable.



Very simple port VLAN setup with VLAN Mode on, ports 1 to 8 is isolated from each other, enabling the switch to isolate broadcast storm, improving LAN security and data transmission.

The TEF1109TP-8-102W will be available on both online and offline platforms for the Rs 6000.
